Chipset
|
Intel H310
|
|
CPU Support
|
Socket 1151 for 9th / 8th Gen Intel Core, Pentium and Celeron processors
* 9th / 8th Generation Intel Core™ Processor Family only supports 300-Series.
|
|
Memory
|
supports Dual Channel DDR4 2666/ 2400/ 2133/ 1866
2 x DDR4 DIMM Memory Slot, Max. Supports up to 32 GB Memory
Each DIMM supports non-ECC 4/8/16GB DDR4 module
|
|
Integrated Video
|
By CPU model
Supports DX12
Supports HDCP
STORAGE 4 x SATA III Connectors (6Gb/s)
|
|
LAN
|
Realtek LAN Chip
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
|
|
Audio CODEC
|
ALC897
7.1 Channels, High Definition Audio
Support HD Audio
USB 4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal header)
6 x USB 2.0 ports (4 on rear I/Os and 2 via internal header)
|
|
Expansion SLOT
|
2 x PCIe 2.0 x1 Slots
1 x PCIe 3.0 x16 Slot (x16 mode)
|
|

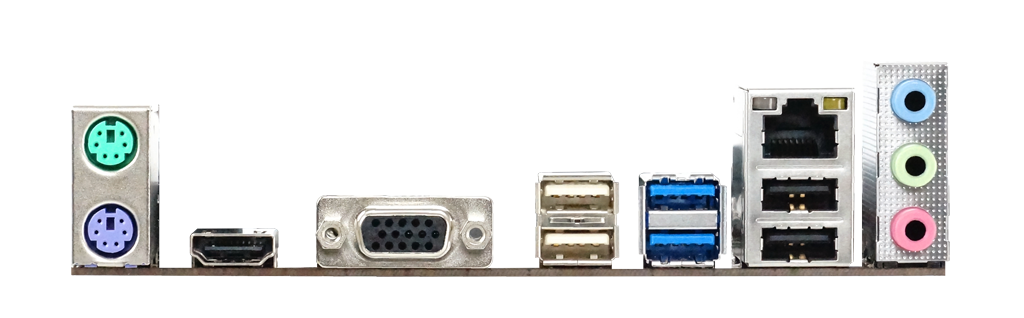

Rear I/O
|
1x PS/2 Mouse Port
1x PS/2 Keyboard Port
1 x HDMI Port
1 x VGA Port
1 x LAN Port
4 x USB 2.0 Ports
2 x USB 3.2(Gen1) Ports
3 x Audio Jack
|
|
Internal I/O
|
4 x SATA III Connectors (6Gb/s)
1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2(Gen1) Header (each header supports 2 USB 3.2(Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
|
|
H/W Monitoring
|
CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
|
|
Dimension
|
Micro ATX Form Factor Dimension: 17.1cm x 22.6cm ( W x L )
OS SUPPORT Supports Windows 10(64bit) / 11(64bit)
|
|
Bundle Software
|
BullGuard
|
|
Accessories
|
2 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
|
|
Features
|
BIO-FLASHER
|
