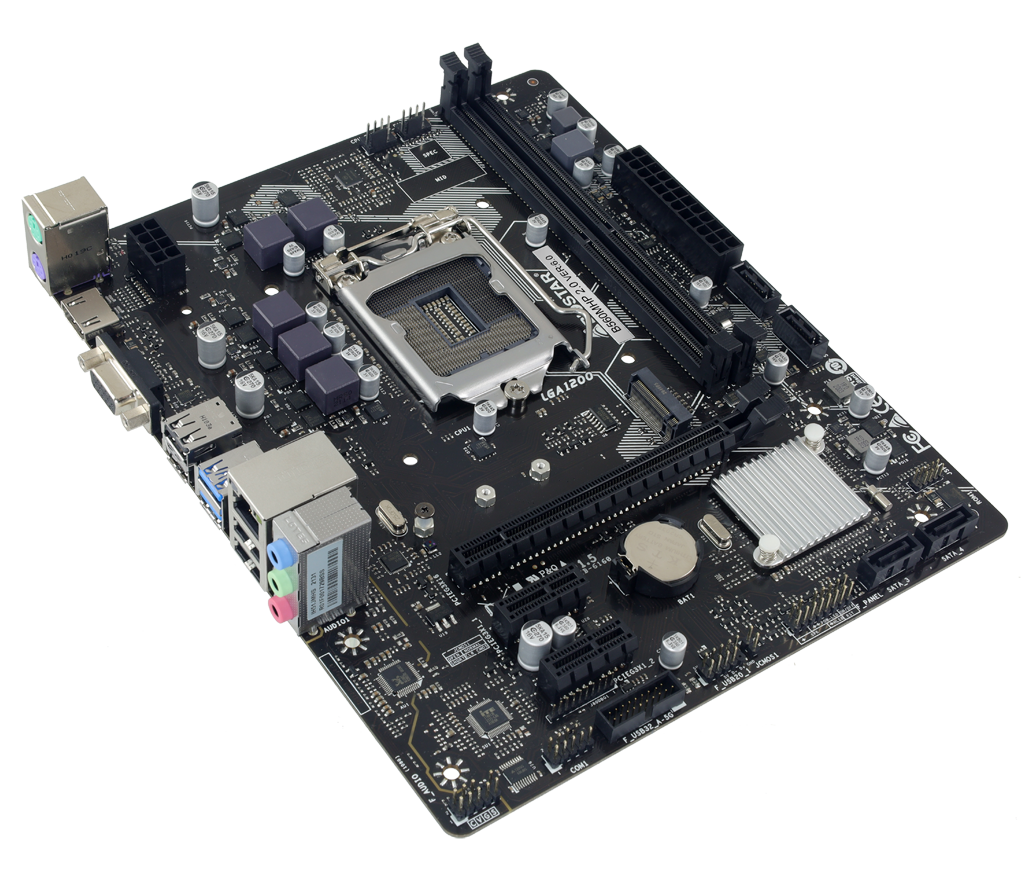

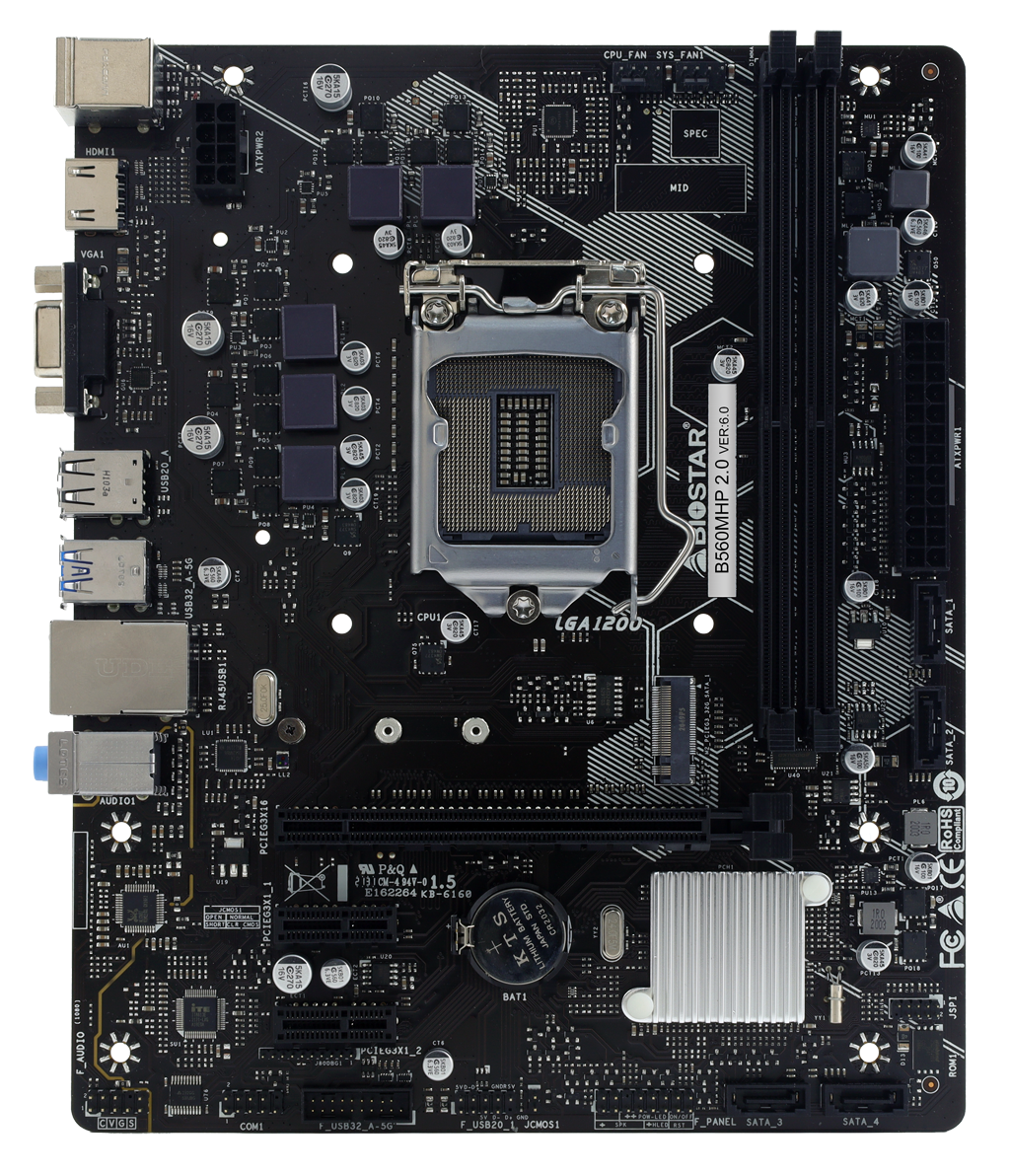

Biostar Intel B560MHP 2.0 Gaming Motherboard

Biostar Intel B560MHP 2.0 Motherboard | Support Intel 10/11 Gen, 2 DIMM DDR4 Up To 64 GB Memory | PCIe 4.0, USB3.2 Gen 1, 4*SATA III Connectors

Spin UpSpin Down
  • Intel B560MHP 2.0
  • Biostar - Gaming Motherboard
  •  Delivery within 48hour
  •  COD, Bank Transfer
Product Description

  • Support Intel 10/11 Gen CPUs: Intel's 10th/11th Gen CPUs offer enhanced performance, integrated graphics, better efficiency, and improved security features. Best for gamers and editors.
  • Dual DDR4: You can insert up to 64 GB DDR4 in two slots; each slot supports 8/16/32 GB to improve the graphical enhancement of the system.
  • SATA III 6Gbps: SATA III 6Gbps is 2 times faster than SATA II. It provides a higher bandwidth to retrieve and transfer HD media.
  • HD Audio: The motherboard provides high-resolution audio with minimal loss of audio accuracy.
  • Video: With the help of the new HDMI 4k2k & DX12 provides high-definition videos with richer scenes.
  • PCIe 4.0: Widely used standard for input/output connectivity in computers. Operates at a signaling rate of 16(GT/s) per lane, effectively doubling the interconnect performance bandwidth compared to the previous version, PCIe 3.0.
  • USB 3.2 GEN1 Ports: Allow users to transfer files faster.


CPU Support

Socket 1200 for 10th / 11th Gen Intel Core™, Pentium and Celeron processors


Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200/ 3333+(OC)

2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory

Each DIMM supports non-ECC 4/8/16/32GB DDR4 module

Integrated Video

Supports DX12

Supports HDCP


4 x SATA III Connector (6Gb/s)

1 x M.2 (M Key) Socket:

Supports M.2 Type 2242/ 2260/ 2280 SSD module.

Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6Gb/s) SSD


Intel I219V

10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

Audio Codec

Realtek ALC897

7.1 Channels, High Definition Audio


4 x USB 3.2(Gen1) ports (2 on rear I/Os and 2 via internal headers)

6 x USB 2.0 ports (4 on rear I/Os and 2 via internal headers)

Expansion Slot

2 x PCIe 3.0 x1 Slot

1 x PCle 3.0/4.0 x16 Slot

Rear I/O

1 x PS/2 Keyboard

1 x PS/2 Mouse

1 x HDMI Port

1 x VGA Port

2 x USB 3.2 (Gen1) Ports

4 x USB 2.0 Ports

1 x LAN port

3 x Audio Jack

Internal I/O

4 x SATA III Connectors (6Gb/s)

1 x USB 2.0 Header (each header supports 2 USB 2.0 ports)

1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)

1 x 8-Pin Power Connector

1 x 24-Pin Power Connector

1 x CPU Fan Connector

1 x System Fan Connector

1 x Front Panel Header

1 x Front Audio Header

1 x Clear CMOS Header

1 x COM Port Header

H/W Monitoring

CPU / System Temperature Monitoring

CPU / System Fan Monitoring

Smart / Manual CPU Fan Control CPU/DDR Voltage Monitoring


Micro ATX Form Factor Dimension: 18.5cm x 22.6cm ( W x L )

OS Support

Supports Windows 10 (64bit) / 11(64bit)

Bundle Software



2 x SATA Cable

1 x I/O Shield

1 x DVD Driver

1 x Quick Guide
