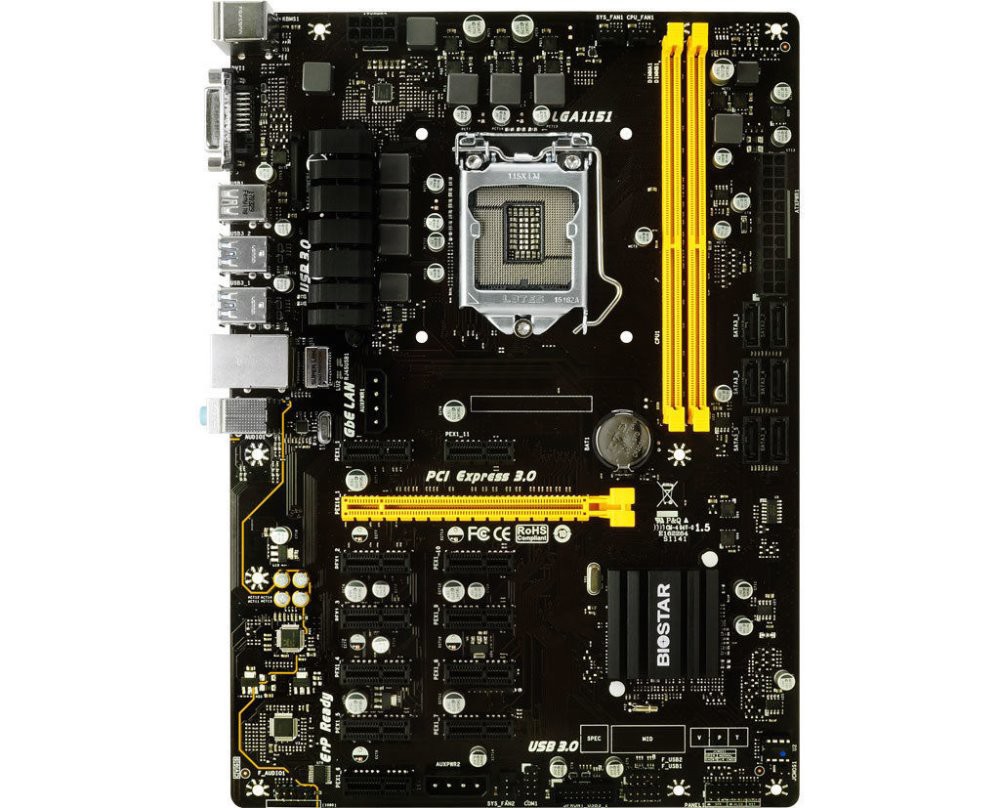

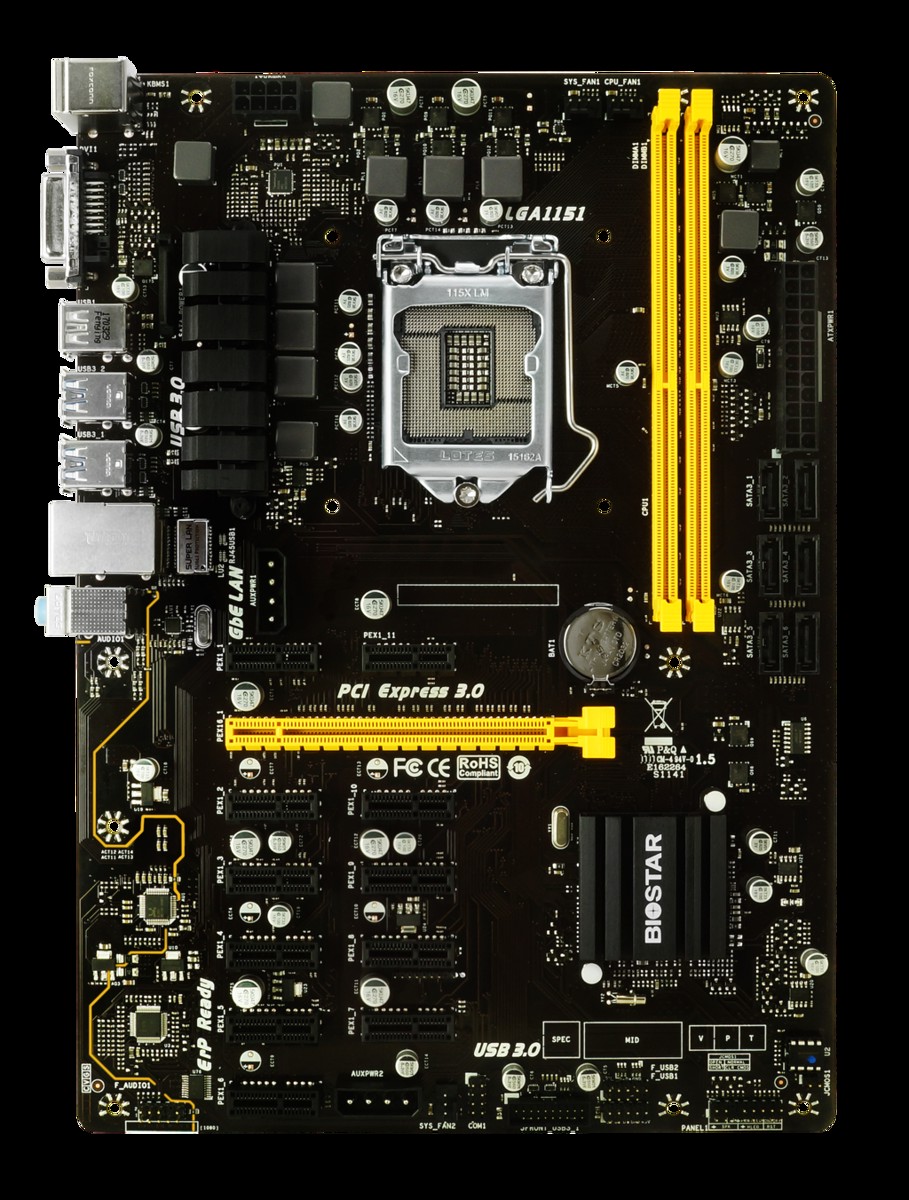

Brand : BIOSTAR
Model : TB250 - BTC PRO
MEMORY SUPPORT:
1) Support Dual Channel DDR4 2400/ 2133/ 1866 MHz
2) 2 x DDR4 DIMM Memory Slot
3) Max. Supports up to 32GB Memory
4) DDR4 2400 for 7th Generation Intel® Core™ Processor Family
CPU SUPPORT:
1) 7th & 6th Gen Intel® Core™ i7 LGA 1151 Processor
2) 7th & 6th Gen Intel® Core™ i5 LGA 1151 Processor
3) 7th & 6th Gen Intel® Core™ i3 LGA 1151 Processor
4) 7th & 6th Gen Intel® Pentium® LGA 1151 Processor
5) 7th & 6th Gen Intel® Celeron® LGA 1151 Processor
6) Maximum CPU TDP (Thermal Design Power) : 95Watt
INTEGRATED VIDEO: By CPU model Supports
DX12 , Supports HDCP
STORAGE : 6 x SATA III Connector
LAN :
1) Realtek RTL8111H - 10/100/1000Mb/s Controller
2) Support Super LAN Surge Protection
AUDIO CODEC : Realtek ALC887 8-Channel HD Audio , Support HD Audio
USB :
4 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
2 x USB 2.0 Port(only 5V power, up to 1.5A)
2 x USB 2.0 Header
EXPANSION SLOT :
1 x PCI-E 3.0 x16 Slot
11 x PCI-E 3.0 x1 Slot(Note: PEX1_6/7/8/9/10/11 slot are not
compatible w/ ATX standard, users need extra connecting kit to install VGA card
for crypto mining.)

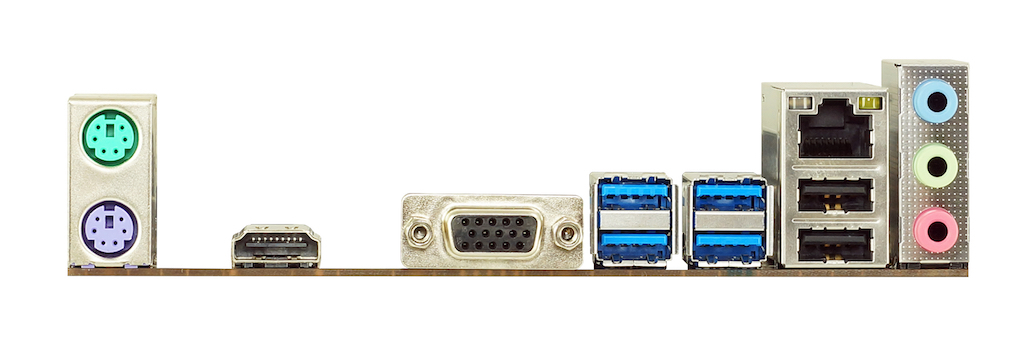

REAR I/O :
1 x PS/2 Mouse
1 x PS/2 Keyboard
4 x USB 3.0 Port
2 x USB 2.0 Port
2 x USB 2.0 Port(only 5V power, up to 1.5A)
1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
1 x LAN Port
3 x Audio Jacks
INTERNAL I/O :
1 x USB 3.0 Header
2 x USB 2.0 Header
6 x SATA III Connector (6Gb/s)
1 x SATA Power Connector(for rear USB power enhancement)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Connector
2 x System Fan Connector
2 x PCI-E 12V 4Pin Connector(Must be installed when using
for bitcoin mining.)
1 x COM Port Header
H/W MONITORING :
1) CPU / System Temperature Monitoring
2) CPU / System Fan Monitoring
3) Smart / Manual CPU Fan Control
4) System Voltage Monitoring
DIMENSION : ATX Form Factor Dimension: 29.5cm x 21cm ( W x L )
OS SUPPORTS:
1) Supports Windows 10(x64) for Intel 7th Generation Processor
2) Support Windows 7 / 8.1(x64) / 10(x64) for Intel 6th
Generation Processor
BUNDLE SOFTWARE :BullGuard , Smart Speed LAN(Windows 7/ 8.1 only) , Intel Rapid Storage Technology
ACCESSORIES : 2 x SATA Cable ,1 x I/O Shield,1 x DVD Driver,1 x User Manual
FEATURES:
1) Supports 100% Solid capacitor
2) Supports Charger Booster
3) Supports BIOS Online Update
